UCTB 200 Series - Tap Base Units
Normal Duty - Wide Inner Race - Set Screw Locking - Inch Bolt Holes

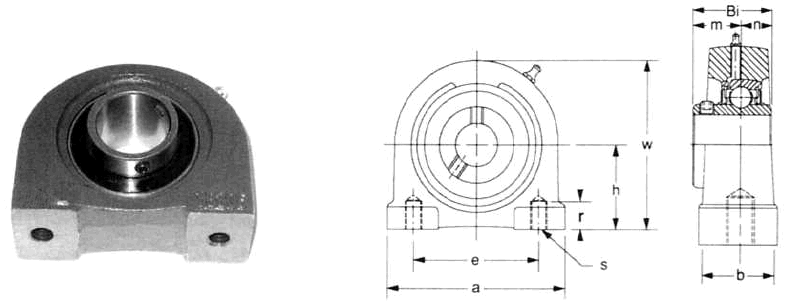

Dimensions inch

Unit
Number

Shaft
Dia.

h

a

e

b

S

r

w

Bi

n

m

UCTB 201-8

1/2"

1-5/16"

2-7/8"

2"

1-1/2"

3/8"-16

1/2"

2-9/16"

1.220

0.500

23/32"

UCTB 202-10

5/8"

UCTB 204-12

3/4"

UCTB 205-14

7/8"

1-7/16

3"

2"

1-1/2"

3/8"-16

1/2"

2-13/16"

1.339

0.563

25/32"

UCTB 205-15

15/16"

UCTB 205-16

1"

UCTB 206-17

1-1/16"

1-11/16"

4"

3"

1-1/2"

7/16"-14

5/8"

3-3/8"

1.500

0.626

7/8"

UCTB 206-18

1-1/8"

UCTB 206-19

1-3/16"

UCTB 206-20

1-1/4"

UCTB 207-20

1-1/4"

1-7/8"

4-1/4"

3-1/4"

1-7/8"

1/2"-13

3/4"

3-3/4"

1.689

0.689

1"

UCTB 207-21

1-5/16"

UCTB 207-22

1-3/8"

UCTB 207-23

1-7/16"

UCTB 208-24

1-1/2"

1-15/16"

4-5/8"

3-1/2"

1-7/8"

1/2"-13

3/4"

3-15/16"

1.937

0.748

1-3/16"

UCTB 208-25

1-9/16"

UCTB 209-26

1-5/8"

2-1/8"

5"

3-3/4"

2"

1/2"-13

3/4"

4-1/4"

1.937

0.748

1-3/16"

UCTB 209-27

1-11/16"

UCTB 209-28

1-3/4"

UCTB 210-30

1-7/8"

2-1/4"

5-1/2"

4"

2"

5/8"-11

7/8"

4-5/8"

2.031

0.748

1-9/32"

UCTB 210-31

1-15/16"

UCTB 210-32

2"

Dimensional Download
