	Tap Base Units
	HCPA Normal Duty Eccentric Collar Locking Metric Bolt Holes

Home

HCPA 200 Series - Tap Base Units
Normal Duty - Wide Inner Race - Eccentric Collar Locking - Metric Bolt Holes

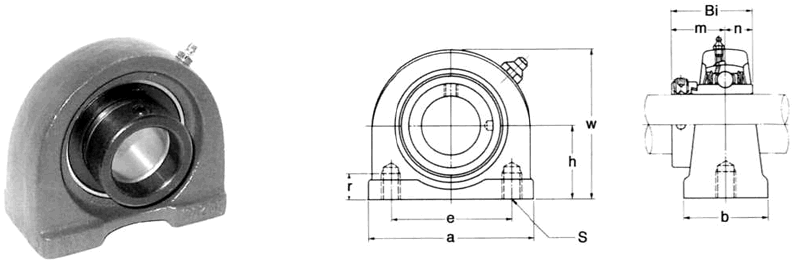

Dimensions inch

Unit
Number

SHAFT DIA.

h

a

e

b

S

r

g

w

Bi

n

m

HCPA 201-8

1/2"

1-3/16"

3"

1-3/64"

1-1/2"

M10x1.5

15/32"

7/16"

7/16"

1.713

0.669

1-3/64"

HCPA 202-10

5/8"

HCPA 204-12

3/4"

HCPA 205-14

7/8"

1-7/16"

3-5/16"

2-13/64"

1-1/2"

M10x1.5

19/32"

15/32"

2-27/32"

1.744

0.685

1-1/16"

HCPA 205-15

15/16"

HCPA 205-16

1"

HCPA 206-17

1-1/16"

1-11/16"

3-43/64"

2-19/32"

1-7/8"

M14x2.0

23/32"

15/32"

3-5/16"

1.902

0.717

1-3/16"

HCPA 206-18

1-1/8"

HCPA 206-19

1-3/16"

HCPA 206-20

1-1/4"

HCPA 207-20

1-1/4"

1-7/8"

4-11/32"

3-5/32"

1-7/8"

M14x2.0

25/32"

1/2"

3-3/4"

2.012

0.740

1-17/64"

HCPA 207-21

1-5/16"

HCPA 207-22

1-3/8"

HCPA 207-23

1-7/16"

HCPA 208-24

1-1/2"

1-15/16"

4-9/16"

3-5/16"

2-1/8"

M14x2.0

25/32"

1/2"

3-15/16"

2.217

0.843

1-3/8"

HCPA 208-25

1-9/16"

HCPA 209-26

1-5/8"

2-9/64"

4-23/32"

3-35/64"

2-1/8"

M14x2.0

31/32"

1/2"

4-1/4"

2.217

0.843

1-3/8"

HCPA 209-27

1-11/16"

HCPA 209-28

1-3/4"

HCPA 210-30

1-7/8"

2-1/4"

5-1/8"

3-45/64"

2-3/8"

M16x2.0

31/32"

9/16"

4-9/16"

2.469

0.969

1-27/32"

HCPA 210-310

1-15/16"

HCPA 210-32

2"

Dimensional Download
