SBAK
Light Duty
Narrow Inner Race
Set Screw Locking
|
Low Base |
|
|
SBAK
|
| SBAK 200 Series - Low Base Light Duty - Narrow Inner Race - Set Screw Locking more Low Base |
 |

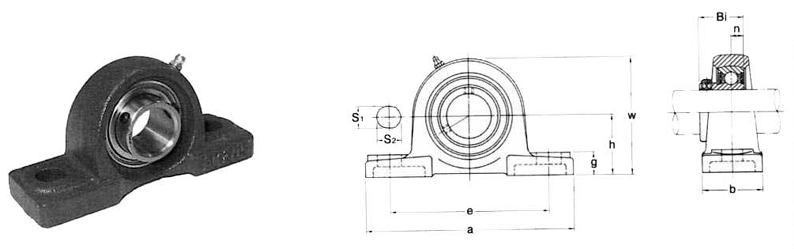

| Dimensions inch |  |
|
Unit Number |
Shaft Dia. |
h | a | e | b | S1 | S2 | g | w | Bi | n |
Bolt Size |
|
| SBAK 204-12 | 3/4" | 1-1/4" | 5" | 3-25/32" | 1-1/4" | 1/2" | 5/8" | 9/16" | 2-15/32" | 0.984 | 0.276 | 3/8" | |
| SBAK 205-14 | 7/8" | 1-5/16" | 5-1/2" | 4-1/8" | 1-1/2" | 1/2" | 3/4" | 19/32" | 2-5/8" | 1.063 | 0.295 | 3/8" | |
| SBAK 205-15 | 15/16" | ||||||||||||
| SBAK 205-16 | 1" | ||||||||||||
| SBAK 206-17 | 1-1/16" | 1-7/16" | 6-5/16" | 4-49/64" | 1-3/4" | 9/16" | 3/4" | 5/8" | 3-1/8" | 1.181 | 5/16" | 1/2" | |
| SBAK 206-18 | 1-1/8" | ||||||||||||
| SBAK 206-19 | 1-3/16" | ||||||||||||
| SBAK 206-20 | 1-1/4" | ||||||||||||
| SBAK 207-20 | 1-1/4" | 1-13/16" | 6-9/16" | 5" | 1-7/8" | 19/32" | 3/4" | 21/32" | 3-9/16" | 1.260 | 0.335 | 1/2" | |
| SBAK 207-21 | 1-5/16" | ||||||||||||
| SBAK 207-22 | 1-3/8" | ||||||||||||
| SBAK 207-23 | 1-7/16" | ||||||||||||
| SBAK 208-24 | 1-1/2" | 1-15/16" | 7-3/32" | 5-11/32" | 2-1/16" | 19/32" | 13/16" | 23/32" | 3-55/64" | 1.339 | 0.354 | 1/2" | |
| SBAK 208-25 | 1-9/16" |
 |
Dimensional Download | |
SBAK.pdf |
