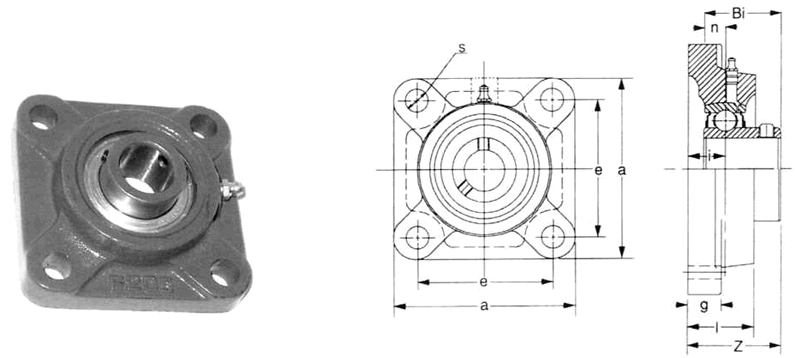

SBF 200 Series - 4-Bolt Flange
Light Duty - Narrow Inner Race - Set Screw Locking

Dimensions inch

Unit
Number

Shaft
Dia.

a

e

i

g

l

s

z

Bi

n

Bolt
Size

SBF 201-8

1/2"

2-63/64"

2-1/8"

3/8"

7/16"

45/64"

13/32"

31/32"

0.866

0.236

3/8"

SBF 202-10

5/8"

SBF 204-12

3/4"

3-25/64"

2-1/2"

19/32"

7/16"

1"

15/32"

1-19/64"

0.984

0.276

3/8"

SBF 205-14

7/8"

3-3/4"

2-3/4"

5/8"

1/2"

1-1/16"

15/32"

1-13/32"

1.063

0.295

3/8"

SBF 205-15

15/16"

SBF 205-16

1"

SBF 206-17

1-1/16"

4-1/4"

3-9/32"

23/32"

1/2"

1-1/4"

15/32"

1-9/16"

1.181

0.315

3/8"

SBF 206-18

1-1/8"

SBF 206-19

1-3/16"

SBF 206-20

1-1/4"

SBF 207-20

1-1/4"

4-19/32"

3-5/8"

3/4"

19/32"

1-11/32"

9/16"

1-43/64"

1.260

0.335

7/16"

SBF 207-21

1-5/16"

SBF 207-22

1-3/8"

SBF 207-23

1-7/16"

SBF 208-24

1-1/2"

5-1/8"

4-1/64"

13/16"

19/32"

1-13/32"

5/8"

1-3/4"

1.339

0.354

1/2"

SBF 208-25

1-9/16"
