Ball Bearings

 6200 Series
 Deep Groove

Home

Products

About Us

Contacts

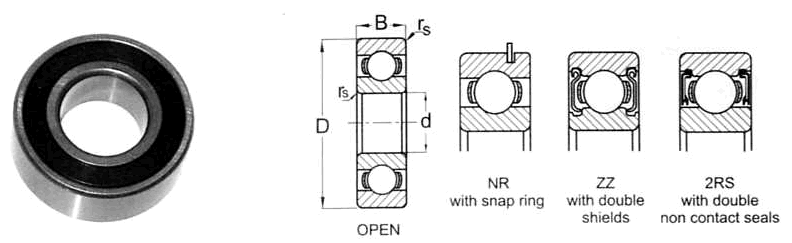

Dimensions      metric /  inch
Bearing Number d D B
6200 10mm
0.3937		 30mm
1.1811		 9mm
0.3543

6201 12mm
0.4724		 32mm
1.2598		 10mm
0.3937

6202 15mm
0.5906		 35mm
1.3780		 11mm
0.4331

6203 17mm
0.6693		 40mm
1.5748		 12mm
0.4724

6204 20mm
0.7874		 47mm
1.8504		 14mm
0.5112

6205 25mm
0.9843		 52mm
2.0472		 15mm
0.5906

6206 30mm
1.1811 		62mm
2.4409		 16mm
0.6299

6207 35mm
1.3780		 72mm
2.8346		 17mm
0.6693

6208 40mm
1.5748		 80mm
3.1496		 18mm
0.7087

6209 45mm
1.7717		 85mm
3.3465		 19mm
0.7480

6210 50mm
1.9685		 90mm
3.5433		 20mm
0.7874

6211 55mm
2.1654		 100mm
3.9370		 21mm
0.8268

6212 60mm
2.3622		 110mm
4.3307		 22mm
0.8661

6213 65mm
2.5591		 120mm
4.7244		 23mm
0.9055

6214 70mm
2.7559		 125mm
4.9213		 24mm
0.9449

6215 75mm
2.9528		 130mm
5.1181		 25mm
0.9843

6216 80mm
3.1496		 140mm
5.5118		 26mm
1.0236

6217 85mm
3.3465		 150mm
5.9055		 28mm
1.1024

6218 90mm
3.5433		 160mm
6.2992		 30mm
1.1811

6219 95mm
3.7402		 170mm
6.6929		 32mm
1.2598

6220 100mm
3.9370		 180mm
7.0866		 34mm
1.3386

6221 105mm
4.1339		 190mm
7.4803		 36mm
1.4173

6222 110mm
4.3307		 180mm
7.0866		 38mm
1.4961

6224 120mm
4.7244		 215mm
8.4646		 40mm
1.5748

6226 130mm
5.1181		 230mm
9.0551		 40mm
1.5748

6228 140mm
5.5118		 250mm
9.8425		 42mm
1.6535
