 CSB 200 Series - Insert Bearings
 Light Duty  -  Narrow Inner Race  -  Set Screw Locking  -  Cylindrical O.D.

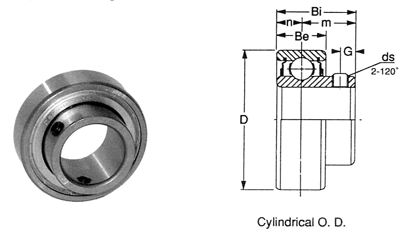

  Dimensions        inch / metric CSB Deminsional Information
Bearing
Number
Shaft
Dia.
D Bi Be n m G ds
CSB 201-8 1/2" 1-9/16"
40mm
7/8" 15/32" 0.236 5/8" 0.157 1/4"-28
UNF
$5.75
CSB 201-8 Insert Bearing
CSB 202-10 5/8"
$5.75
CSB 202-10 Insert Bearing
CSB 204-12 3/4" 1-27/32"
47mm
31/32" 9/16" 9/32" 23/32" 0.197 1/4"-28
UNF
$6.25
CSB 204-12 Insert Bearing
CSB 205-14 7/8" 2-1/16"
52mm
1-1/16" 19/32" 0.295 49/64" 0.216 1/4"-28
UNF
$6.75
CSB 205-14 Insert Bearing
CSB 205-15 15/16"
$6.75
CSB 205-15 Insert Bearing
CSB 205-16 1"
$6.50
CSB 205-16 Insert Bearing
CSB 206-17 1-1/16" 2-7/16"
62mm
1-3/16" 5/8" 5/16" 7/8" 0.236 5/16"-24
UNF
$7.80
CSB 206-17 Insert Bearing
CSB 206-18 1-1/8"
$7.80
CSB 206-18 Insert Bearing
CSB 206-19 1-3/16"
$7.80
CSB 206-19 Insert Bearing
CSB 206-20 1-1/4"
$7.80
CSB 206-20 Insert Bearing
CSB 207-20 1-1/4" 2-27/32"
72mm
1-1/4" 21/32" 0.335 59/64" 0.236 5/16"-24
UNF
$9.65
CSB 207-20 Insert Bearing
CSB 207-21 1-5/16"
$9.65
CSB 207-21 Insert Bearing
CSB 207-22 1-3/8"
$9.65
CSB 207-22 Insert Bearing
CSB 207-23 1-7/16"
$9.65
CSB 207-23 Insert Bearing
CSB 208-24 1-1/2" 3-5/32"
80mm
1-11/32" 23/32" 11/32" 31/32" 5/16" 5/16"-24
UNF
$11.80
CSB 208-24 Insert Bearing
CSB 208-25 1-9/16"
$11.80
CSB 208-25 Insert Bearing
CSB 209-26 1-5/8" - - - - - - -
$13.80
CSB 209-26 Insert Bearing
CSB 209-27 1-11/16"
$13.80
CSB 209-26 Insert Bearing
CSB 209-28 1-3/4"
$13.80
CSB 209-28 Insert Bearing
CSB 210-30 1-7/8" - - - - - - -
$14.95
CSB 210-30 Insert Bearing
CSB 210-31 1-15/16"
$14.95
CSB 210-31 Insert Bearing
Dimensional Download   CSB.pdf
